帕森斯V鎖寬帶式接鏈環專門用于連接寬帶圓環鏈，制造過程中選擇了富含Cr、Ni、Mo合金元素的高合金鋼和多重?zé)崽幚砉に嚕哂蟹浅８叩睦煨阅芎推趬勖?/p>
這種寬帶鏈只可垂直使用，并經精心設計，以確保對鏈輪的配合。
V-lock Broad Band Chain connector from Parsons is deployed to connect the Broad Band Chain. The tensile and fatigue performance is particularly impressive and has been achieved by careful selection of raw material include Cr,Ni and Mo and heat treatment during the manufacturing process. The perfect engagement with sprocket only in Vertical has been achived.

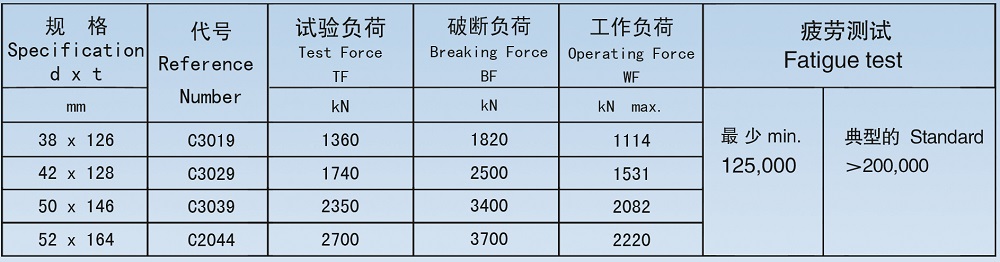

加強型礦用寬帶鏈接鏈環機械性能
Mechanical properties of the Broad Band Chain Connector

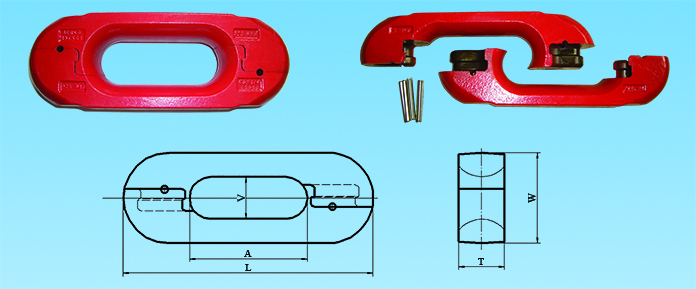

尺寸與質量
Size and weight
備注：
實驗負荷下最大伸長率1.2%
參考DIN22259:2001驗證方法及程序
Note:
Elongation at test force -1.2% max
Refer to the test methods and procedures of DIN 22258:2001
